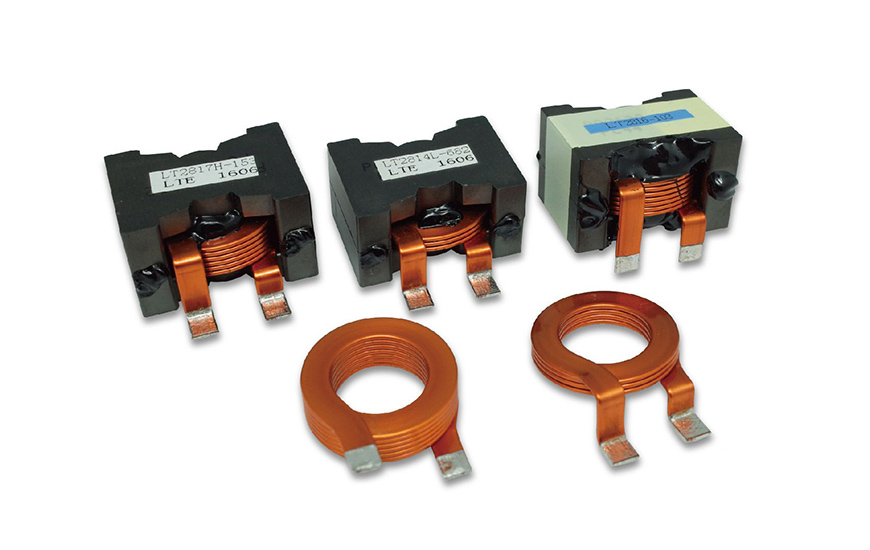

EDGEWISE WIRE INDUCTOR

This type of design is suitable for the large current of transformer and choke coil for photovoltaic inverter, Power generation, Electrical car charging system or other high current application.

Features

• Flat wire design.
• Magnetically shielded.
• High rated current up to 50A.
• Operating temperature range: -40°C to +150°C
• Through hole or SMD type.
• Optimized for DC / DC converters.
• Customized designs available upon request.

Specification for Custom Design

1. Ferrite Core: Popularly in PQ26 (27/28) & E type
2. Flat wire: (t) 0.7 - 1mm, (w) 4mm -
3. Leads in SMD or Through Hole Type.
4. Inductance: to be customized.
5. Current: to be customized
