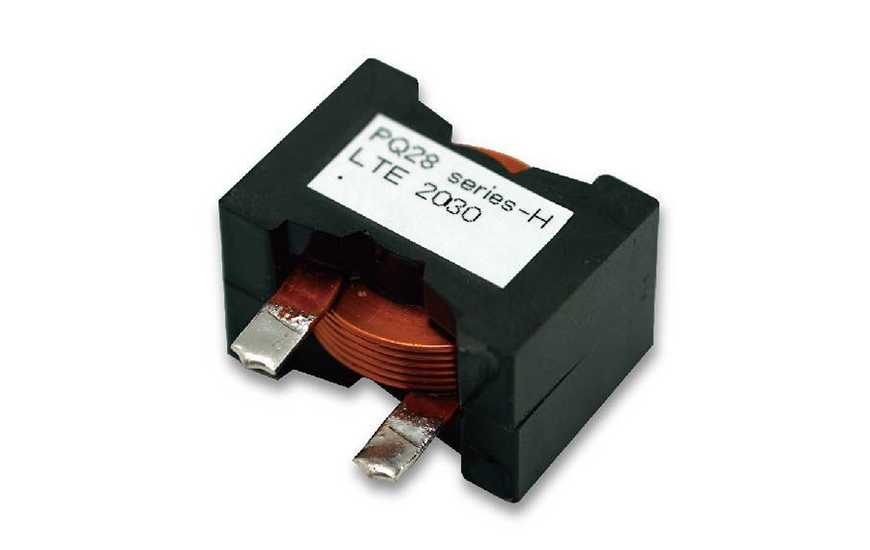

    PQ28 SERIES-H FLATWIRE POWER INDUCTOR

    Features

    • Magnetically shielded
    • Flat wirewound
    • Low DCR, low loss, reduce size
    • High efficiency, less temperature
    • High saturation current
    • Through-hole vertical mounting allows for a small footprint


    Specification

    Part Number Inductance (uH) ± 10
    % @ 100 kHz/0.1V    		 DCR (m Ω) Max. SRF (MHz) Typ. Irms (A) Typ.
    PQ2817H-332 3.3 2.82 40 28
    PQ2817H-472 4.7 2.82 30 28
    PQ2817H-682 6.8 2.82 25 28
    PQ2817H-103 10  2.82 20 28
    PQ2817H-153 15 2.82 16 28
    PQ2817H-223 22 2.82 15 28
    PQ2817H-333 33 2.82 10 28


    Features

    • Magnetically shielded
    • Flat wirewound
    • Low DCR, low loss, reduce size
    • High efficiency, less temperature
    • High saturation current
    • Through-hole vertical mounting allows for a small footprint


    Specification

    Part Number Inductance (uH) ± 10
    % @ 100 kHz/0.1V    		 DCR (m Ω) Max. SRF (MHz) Typ. Irms (A) Typ.
    PQ2815H-332 3.3 2.01 30 30
    PQ2815H-472 4.7 2.01 25 30
    PQ2815H-682 6.8 2.01 20 30
    PQ2815H-103 10 2.01 15 30
    PQ2815H-153 15 2.01 12 30
    PQ2815H-223 22 2.01 10 30
    PQ2815H-333 33 2.01 8 30
