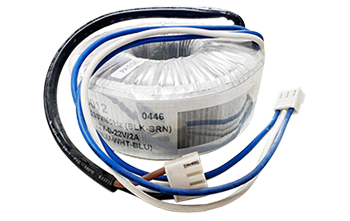

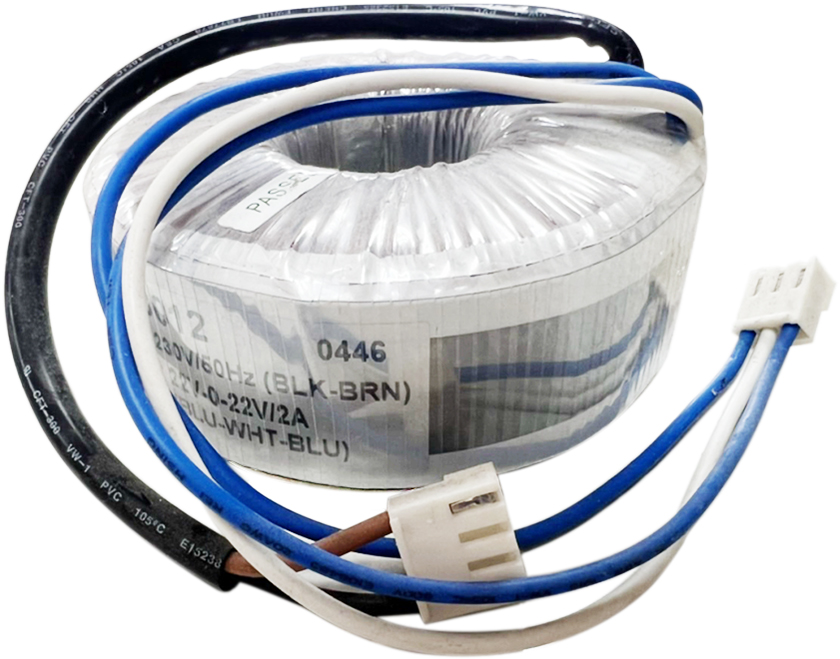

    TOROIDAL POWER TRANSFORMER

    Toroidal Type of Transformer has high efficiency, low interference and compact size (1U rack acceptable), so it is widely used in hi-fi, hi-end audio product, test instrument, medical equipment, security system, power supply and other industry application.

    The core of toroidal transformer is wound with silicon steel tape, then wind copper wire (core was wound inside of copper wire) to generate voltage and current. And the insulation is with Mylar tape to enchase the safety of product.

    Range of Toroidal type of transformer

    • Specification: 50VA ~ 5KVA (customer requirement is acceptable)
    • Toroidal type of Power transformer made in Taiwan
      　

    Advantage of Toroidal Power Transformer

    • Low leakage flux
    • Low hum/noise
    • Low exciting current
    • Higher efficiency
    • Outer full insulate
    • Light weight, Compact size and easy to be installed
      　

    Standard Model of LTE Toroidal Power Transformer ,Any custom design is welcome, please contact our sales person for more details

    Specification

    Part No. Power Rating VA Dimensions (OD)mm Dimension (H)mm
    LT-TPT-0050A 50VA 82 38
    LT-TPT-0050B 50VA 90 33
    LT-TPT-0075A 75VA 90 45
    LT-TPT-0075B 75VA 100 36
    LT-TPT-0100A 100VA 90 55
    LT-TPT-0100B  100VA 100 45
    LT-TPT-0100C 100VA 116 36
    LT-TPT-0150A 150VA 90 65
    LT-TPT-0150B  150VA 100 50
    LT-TPT-0150C 150VA 125 37
    LT-TPT-0200A 200VA 100 60
    LT-TPT-0200B 200VA 110 50
    LT-TPT-0200C 200VA 135 38
    LT-TPT-0250A 250VA 110 65
    LT-TPT-0250B 250VA 116 50
    LT-TPT-0250C 250VA 145 38
    LT-TPT-0300A 300VA 110 65
    LT-TPT-0300B 300VA 116 55
    LT-TPT-0300C 300VA 155 38
    LT-TPT-0350A 350VA 110 70
    LT-TPT-0350B 350VA 118 60
    LT-TPT-0350C 350VA 165 38
    LT-TPT-0400A 400VA 118 67
    LT-TPT-0400B 400VA 127 57
    LT-TPT-0400C 400VA 175 38
    LT-TPT-0500A 500VA 127 68
    LT-TPT-0500B 500VA 135 63
    LT-TPT-0500C 500VA 180 38
    LT-TPT-0600A 600VA 135 63
    LT-TPT-0600B 600VA 145 58
    LT-TPT-0750A 750VA 138 75
    LT-TPT-0750B 750VA 155 65
    LT-TPT-0900A 900VA 145 75
    LT-TPT-0900B 900VA 165 65
    LT-TPT-1000A 1000VA 157 70
    LT-TPT-1000B 1000VA 180 60
    LT-TPT-1200A 1200VA 157 80
    LT-TPT-1200B 1200VA 173 65
    LT-TPT-1400A 1400VA 176 78
    LT-TPT-1400B 1400VA 183 65
    LT-TPT-1800A 1800VA 175 82
    LT-TPT-1800B 1800VA 185 78
    LT-TPT-2000A 2000VA 180 90
    LT-TPT-2000B 2000VA 180 90
    LT-TPT-2500A 2500VA 185 85
    LT-TPT-2500B 2500VA 200 85
    LT-TPT-3000A 3000VA 203 90
    LT-TPT-3000B 3000VA 208 85
    LT-TPT-3500A 3500VA 203 100
    LT-TPT-3500B 3500VA 208 90
    LT-TPT-4000A 4000VA 208 100
    LT-TPT-4000B 4000VA 223 90
    LT-TPT-4500A 4500VA 220 100
    LT-TPT-4500B 4500VA 235 90
    LT-TPT-5000A 5000VA 230 100
    LT-TPT-5000B 5000VA 245 90
