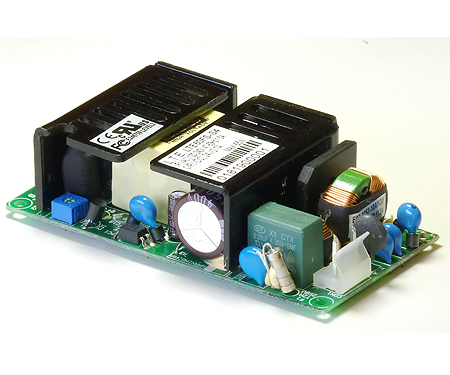

LTE60FS-S5

General Specification
Turn-on Time(Full Load @115Vac):2 Sec
Hoid-up Time(Full Load @115Vac):16mSec
Safety Ground Leakage Current (Class l Type@230Vac 50Hz):<3.5mA

Protection Specification:
Brown-Out Protection:Auto-Recovery
Over Voltage Protection : Latch Off(150%±35%)>(S0) (145%±25%)>(S1) (140%±20%)>(S1-1.S2.S3)
(130%±15%)>(S4.S4-1.S5) (135%±20%)>(S6)
Over Load protection : Hiccup/Auto-Recovery(Overcurrent Range@110%~200%Above Rating Load)

Environment Specification:
Operating Temperature:0-50℃
Storage Temperature:-40 to 85 ℃
Storage Humidity:5% to 95% RH
